Precision Metal CNC Milling Service
MetaliCNC delivers high-precision metal CNC milling services for prototypes and production parts with lead time confirmed per order — 2–4 weeks standard, rush orders case by case. Our CNC machining capabilities ensure exceptional accuracy, superior surface finishes, and consistent quality across all your metal components.
Comprehensive CNC Milling Capabilities
Controlled setups and inspection against your drawing keep your parts to specification on every run.

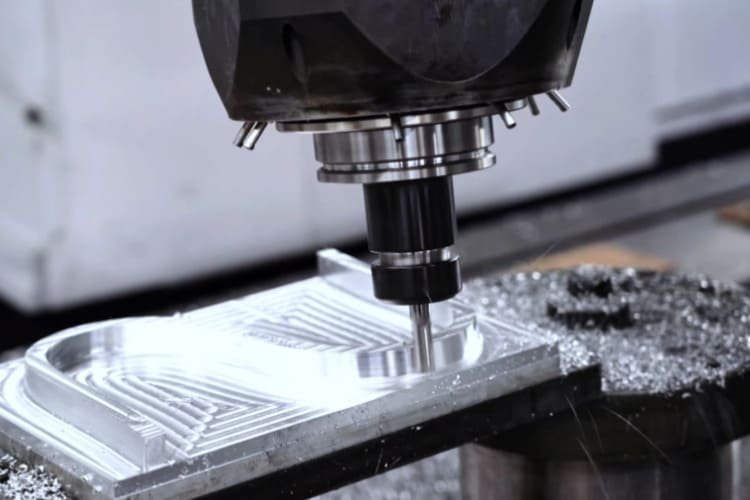

3-Axis CNC Milling
Our 3-axis CNC milling services provide efficient machining for parts with features on multiple sides. Perfect for components with moderate complexity requiring precision and repeatability.

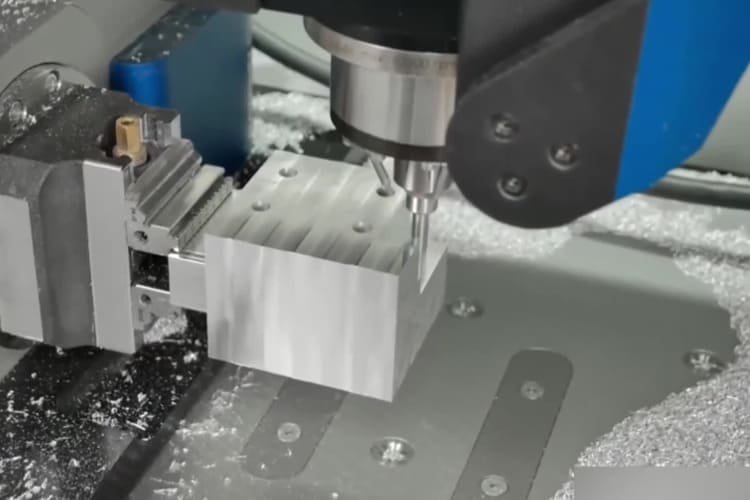

4-Axis CNC Milling
4-axis machining adds rotational capability to standard 3-axis movement, allowing for more complex geometries and reduced setup time for multi-sided parts.
5-Axis CNC Milling
For complex geometries requiring access from multiple angles, our 5-axis CNC milling capabilities deliver superior results with fewer setups, reducing production time and improving accuracy.
| Specification | Standard Capability | Enhanced Capability |
|---|---|---|
| Maximum Part Size | 24" x 16" x 8" (610mm x 406mm x 203mm) | 40" x 20" x 10" (1016mm x 508mm x 254mm) |
| Minimum Feature Size | 0.020" (0.5mm) | 0.005" (0.127mm) |
| Standard Tolerances | ±0.005" (±0.127mm) | ±0.001" (±0.025mm) |
| Surface Finish | 125 Ra or better | 32 Ra or better |
| Lead Time | 2 – 4 weeks | Rush — confirmed case by case |
Related processes: features a cutter cannot reach are cut on our wire EDM machines; tight shaft and bore fits, and finishes finer than milling can hold, come from CNC grinding. If you want the geometry proven before a production run, start with rapid prototyping and low-volume production.
CNC Milling Capability
Numbers we hold routinely, and where a drawing needs a conversation first.
Work Envelope (3-axis)
up to 1000 × 600 × 500 mm
Largest prismatic part we take on. Undercuts and deep cavities are cut with wire EDM instead.
Standard Tolerance
The default on dimensions without a tolerance callout. Tighter values are quoted, not assumed.
Critical Features
±0.01 mm
Held on the dimensions you mark as functional. ±0.005 mm where the geometry and material allow.
Minimum Wall Thickness
0.5 mm Al · 1.0 mm steel
Thinner walls flex away from the cutter. Tell us early if the design needs less.
Minimum Corner Radius
R1 mm (R0.5 mm possible)
Internal corners are set by cutter diameter. R0.5 mm needs small tools and slower passes.
Surface Finish
Ra 1.6 – 3.2 µm
As-milled. Finer finishes come from surface finishes — say which surfaces matter before we quote.
Metal Materials for CNC Milling
MetaliCNC works with a wide range of metals to meet your specific application requirements.
Aluminum Alloys
Lightweight with excellent machinability and corrosion resistance, ideal for aerospace, industrial automation, and consumer products.
- Aluminum 6061-T6
- Aluminum 7075-T6
- Aluminum 5052-H32
- Aluminum 2024-T3
- Aluminum 6063-T5
Stainless Steel
Excellent corrosion resistance and strength for medical, food processing, and marine applications.
- Stainless Steel 303
- Stainless Steel 304
- Stainless Steel 316/316L
- Stainless Steel 17-4 PH
- Stainless Steel 410
Steel Alloys
High strength and durability for industrial applications and tooling.
- Steel 1018
- Steel 4140
- Steel 4340
- Tool Steel A2
- Tool Steel D2
Brass & Copper
Excellent electrical conductivity and corrosion resistance for electrical components and decorative applications.
- Brass C360
- Brass C260
- Copper C101
- Copper C110
Titanium
Superior strength-to-weight ratio and biocompatibility for aerospace, medical, and high-performance applications.
- Titanium Grade 2
- Titanium Grade 5 (Ti-6Al-4V)
Specialty Metals
Engineered for specific performance requirements in demanding applications.
- Inconel 718
- Hastelloy C-276
- Kovar
- Invar 36
Material guides: see the dedicated pages for brass and copper, carbon and alloy steel, and engineering plastics.
Contact our engineering team to discuss your specific material requirements.
Industries We Serve
MetaliCNC provides precision metal CNC milling services across a wide range of industries, delivering components that meet the most demanding specifications and regulatory requirements.
Aerospace & Defense
Precision-machined components for aircraft, spacecraft, and defense systems held to demanding dimensional and material specifications.
Medical & Dental
Components for medical devices, surgical instruments, and dental implants, machined from biocompatible materials with documentation on request.
Industrial Automation
High-performance components for automation equipment, with emphasis on durability and precision.
Electronics
Precision housings, heat sinks, and connectors for electronic devices, held to tight dimensional tolerances.
Oil & Gas
Durable components for harsh environments with corrosion resistance and high-pressure capabilities.
Robotics & Automation
Precision components for robotic systems and automated equipment with emphasis on accuracy and repeatability.
Why Choose MetaliCNC's CNC Milling Service?
When you choose MetaliCNC for your CNC milling services, you gain a partner committed to excellence in every aspect of your project.
Predictable Scheduling
Standard lead time is 2–4 weeks. Rush orders are quoted case by case — tell us your deadline and we will say straight away if we can hit it. We share production status whenever you ask.
Inspection Before Shipment
Every part is inspected against your drawing before it ships. If a delivered part does not match the agreed specification, we review the inspection records with you and agree on rework or remake.
Competitive Pricing
Transparent pricing with no hidden fees. Volume discounts available for production runs. Drawing review before tooling — anything unmachinable flagged before you commit
Expert Support
Engineering support throughout your project: drawings reviewed before tooling, and replies by email within 48 hours in the normal case.
Certified Materials
Full material certifications and traceability. All materials sourced from reputable suppliers with documentation.
Advanced Technology
Latest CNC equipment with automated tool changers and in-process monitoring for consistent, high-quality results.
Frequently Asked Questions
Everything you need to know about our Metal CNC Machining services
What file formats do you accept for designs?
3D+2D drawings, preferred formats below:
- STEP (.stp)
- IGES (.igs)
- PDF drawings (with GD&T callouts)
What are your standard lead times?
Standard lead time is 2–4 weeks. Rush orders are confirmed case by case — tell us your deadline up front and we will say straight away whether we can hit it.
Do you offer design assistance?
We review every drawing before quoting. If we find a feature that cannot be machined as drawn, or one that adds cost without adding function, we point it out and suggest an alternative for you to confirm. If the drawing is machinable as it stands, we quote it as-is — we do not redesign parts that already work.
What is your minimum order quantity?
We don’t have a minimum order quantity. We can produce a single prototype or thousands of parts depending on your needs.
What is your return policy?
At MetaliCNC, every product goes through strict verification—from trial production and inspection testing to customer confirmation—before shipment. Our quality assurance process ensures that all parts meet the agreed specifications before delivery, minimizing the risk of nonconformities. We take pride in our precision and reliability, and every shipment is the result of a joint confirmation between our engineers and customers.
In the rare event that a delivered part does not meet the agreed specifications, we follows a transparent and responsible after-sales process. Customers can submit a claim with inspection data, photos, or videos clearly indicating the nonconforming features. Our quality team will review the case within 48 hours to identify root causes—whether related to design, machining, material, or logistics.
Based on the assessment, we provide appropriate solutions such as rework, remake, partial refund, or credit, in line with the order terms. All cases are fully documented and backed by inspection records to ensure traceability. To help us resolve issues faster, customers should retain original samples and all supporting evidence. Each case also feeds into our continuous improvement system to further enhance product quality and customer satisfaction
Our Streamlined Process
From quote to delivery, with lead time confirmed per order — 2–4 weeks standard, rush case by case — 2–4 weeks standard, rush case by case
Upload Your Design
Submit your CAD files (STEP, IGES, STL, or DWG) through our secure portal. Our team reviews within 2 hours.
Drawing Review
Our engineers review every drawing before tooling. If a feature cannot be machined as drawn, or costs more than it needs to, we flag it and suggest an alternative for you to confirm.
Precision Machining
Advanced CNC machines execute your parts with rigorous process controls and in-process inspections.
Surface Finishing
Choose from anodizing, powder coating, electroplating, passivation, and other finishing options.
Quality Inspection
Every part is inspected against your drawing before it ships, using CMM, optical comparators and calibrated measurement equipment. Reports available on request.
Fast Delivery
Secure packaging and worldwide shipping. Track your order every step of the way to your door.
Ready to Start Your Project?
Get a free quote within 48 hours in the normal case. Upload your CAD files or describe your project, and our engineering team will provide a detailed quotation with recommendations.
