5-Axis CNC Machining Service
Precision-engineered complex components with unmatched accuracy. MetaliCNC delivers world-class 5-axis CNC machining solutions for the most demanding applications.
- ±0.01 mm Tolerance
- Complex Geometries
- Predictable Scheduling
What is 5-Axis CNC Machining?

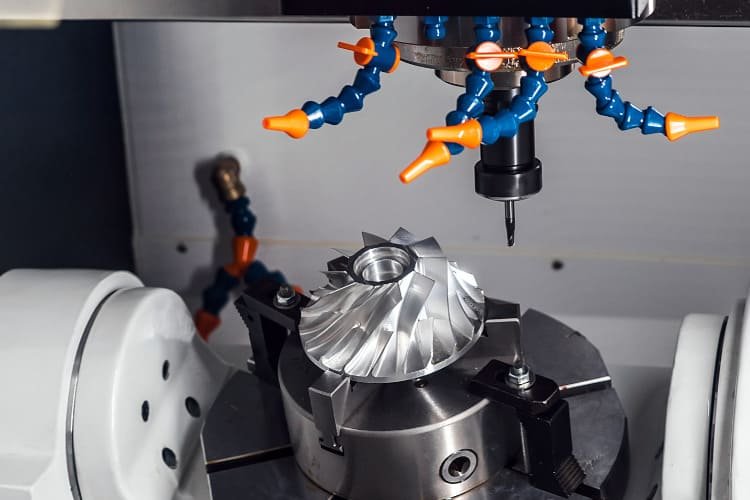

5-axis CNC machining refers to a manufacturing process where computer-controlled cutting tools move simultaneously across five different axes. Unlike conventional 3-axis machining (which moves along the X, Y, and Z linear axes), 5-axis technology adds two rotational axes—typically labeled A and B—allowing the cutting tool or workpiece to rotate and approach the material from virtually any angle.
Think of it as the difference between a robotic arm with only elbow movement versus one with full wrist and shoulder rotation. This enhanced flexibility enables machinists to create complex, organic shapes with superior surface finishes in a single setup—dramatically reducing production time while improving accuracy.
±0.01 mm on Critical Features
Complex Parts in One Setup
Simultaneous 5-Axis Contouring
Two Primary Types of 5-Axis Machining:
3+2 Axis Machining (Positional)
In 3+2 machining, the two rotational axes position the cutting tool at a fixed angle, then lock in place while the three linear axes perform the cutting operation. This approach offers improved access to multiple part faces without requiring multiple setups.
Continuous 5-Axis Machining (Simultaneous)

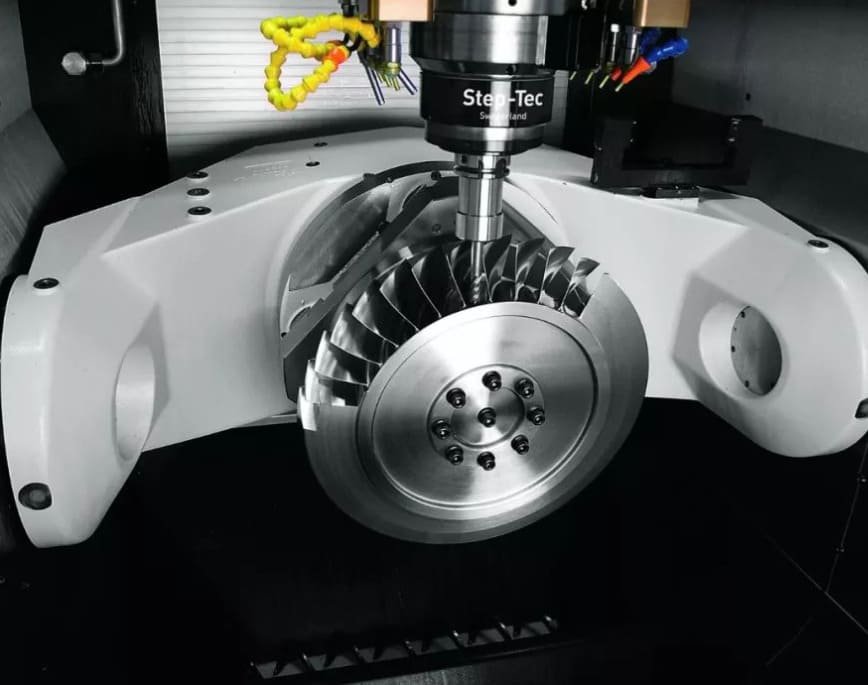

True 5-axis simultaneous machining coordinates all five axes in continuous motion during cutting operations. This technique enables the creation of complex contoured surfaces and organic geometries with exceptional precision and surface finish.
Our 5-Axis CNC Machining Capabilities
Complex geometry in a single setup, held to the tolerance your drawing calls for — with the same inspection records as the rest of our work.
| Capability Metrics | MetaliCNC |
|---|---|
| Work Envelope | Ø 500 × 400 mm typical; larger quoted case by case |
| Standard Tolerance | ISO 2768-m on untoleranced dimensions |
| Critical Features | ±0.01 mm, ±0.005 mm where the geometry allows |
| Faces per Setup | Up to 5 faces in one clamping |
| Minimum Corner Radius | R1 mm recommended |
| Material Compatibility | Aluminum, stainless steel, carbon and alloy steel, titanium, brass and copper, engineering plastics |
| Inspection | Inspected against your drawing |
Related processes: features a cutter cannot reach are cut on our wire EDM machines; tight shaft and bore fits, and finishes finer than milling can hold, come from CNC grinding. If you want the geometry proven before a production run, start with rapid prototyping and low-volume production.
Applications and Industries for 5-Axis CNC Machining
Faster turnarounds, and cost-effective solutions for your most demanding projects.
Aerospace
Critical flight components, turbine blades, landing gear parts, and structural assemblies with stringent quality requirements.
Medical Devices
Biocompatible surgical instruments, implants, and diagnostic equipment requiring superior precision and surface finish.
Robotics
Joint housings, brackets and end-effector parts where stiffness-to-weight and repeatability decide the design.
Electronics
Precision housings, heat sinks, connectors, and enclosures for advanced electronic systems and devices.
Defense
Components for demanding applications, machined and inspected to the tolerances your drawings specify.
Industrial Equipment
Heavy-duty components, automation parts, and specialized tooling for manufacturing and processing industries.
Why Choose MetaliCNC?
We’re not just another machine shop. We’re your manufacturing partner committed to your success through quality, speed, and exceptional service.
Guaranteed Quality
Every part is inspected against your drawing before it ships. CMM reports available on request.
Predictable Scheduling
Standard lead time is 2–4 weeks. Rush orders quoted case by case — tell us your deadline up front.
Expert Engineering Support
Direct access to our machining engineers for design optimization, material selection, and technical guidance.
Inspection Records
Every part is inspected against your drawing before shipping, with reports available on request.
Advanced 5-Axis Capability
Simultaneous 5-axis machining with high-speed spindles and multi-axis tool paths, so complex geometry is finished in fewer setups and holds better positional accuracy.
Transparent Communication
Quotes within 48 hours in the normal case, and a progress update whenever you ask — you always know where your order stands.
Our Streamlined 5-Axis Machining Process
From initial design submission to final delivery, we’ve optimized every step to ensure quality, speed, and transparent communication.
1
Submit Your Design
Upload your CAD files (STEP, IGES, or STL) through our secure portal or email them directly to our engineering team.
2
Design Review & Quote
Our engineers review your drawing, work out the 5-axis setup, and provide a detailed quote. Anything that cannot be machined as drawn is flagged before tooling.
3
CAM Programming
Expert programmers create optimized toolpaths using advanced CAM software to ensure efficiency and precision.
4
Precision Machining
Your parts are machined on five-axis equipment set up for the job, and the dimensions you mark as critical are checked against your drawing before it ships.
5
Quality Inspection
Every part undergoes rigorous inspection using CMM and other precision measuring equipment to verify specifications.
6
Delivery
Parts are carefully packaged and shipped with full documentation including inspection reports and material certifications.
What's the difference between 3-axis and 5-axis CNC machining?
3-axis machining moves the cutting tool along X, Y, and Z axes, suitable for simpler geometries. 5-axis machining adds two rotational axes (A and B), allowing the tool to approach the workpiece from any angle. This eliminates the need for multiple setups, enables complex undercuts and contours, and provides superior surface finishes. It is ideal for aerospace, medical, and complex robotics components.
What file formats do you accept for designs?
3D+2D drawings, preferred formats below:
- STEP (.stp)
- IGES (.igs)
- PDF drawings (with GD&T callouts)
What are your standard lead times?
Standard lead time is 2–4 weeks. Rush orders are confirmed case by case — tell us your deadline up front and we will say straight away whether we can hit it.
Do you offer design assistance?
We review every drawing before quoting. If we find a feature that cannot be machined as drawn, or one that adds cost without adding function, we point it out and suggest an alternative for you to confirm. If the drawing is machinable as it stands, we quote it as-is — we do not redesign parts that already work.
What is your minimum order quantity?
We don’t have a minimum order quantity. We can produce a single prototype or thousands of parts depending on your needs.
What is your return policy?
At MetaliCNC, every product goes through strict verification—from trial production and inspection testing to customer confirmation—before shipment. Our quality assurance process ensures that all parts meet the agreed specifications before delivery, minimizing the risk of nonconformities. We take pride in our precision and reliability, and every shipment is the result of a joint confirmation between our engineers and customers.
In the rare event that a delivered part does not meet the agreed specifications, we follows a transparent and responsible after-sales process. Customers can submit a claim with inspection data, photos, or videos clearly indicating the nonconforming features. Our quality team will review the case within 48 hours to identify root causes—whether related to design, machining, material, or logistics.
Based on the assessment, we provide appropriate solutions such as rework, remake, partial refund, or credit, in line with the order terms. All cases are fully documented and backed by inspection records to ensure traceability. To help us resolve issues faster, customers should retain original samples and all supporting evidence. Each case also feeds into our continuous improvement system to further enhance product quality and customer satisfaction
Numbers We are Proud of
12+ Years in Business
Since 2014
Prototypes to Production Runs
OEMs, Engineers & Startups
Prototype through production
2–4 Weeks · Rush on Request
Quoted case by case
Ready to Start Your 5-Axis Machining Project?
Get a free quote within 48 hours in the normal case. Our expert team is ready to bring your most complex designs to life with precision and speed.
- Free drawing review before tooling
- No minimum order quantity
- NDA protection available
